Pro-Tech | Self Centering Doweling Jig 6/8/10mm Aluminium 16 - 60mm Range

Self Centering Doweling Jig

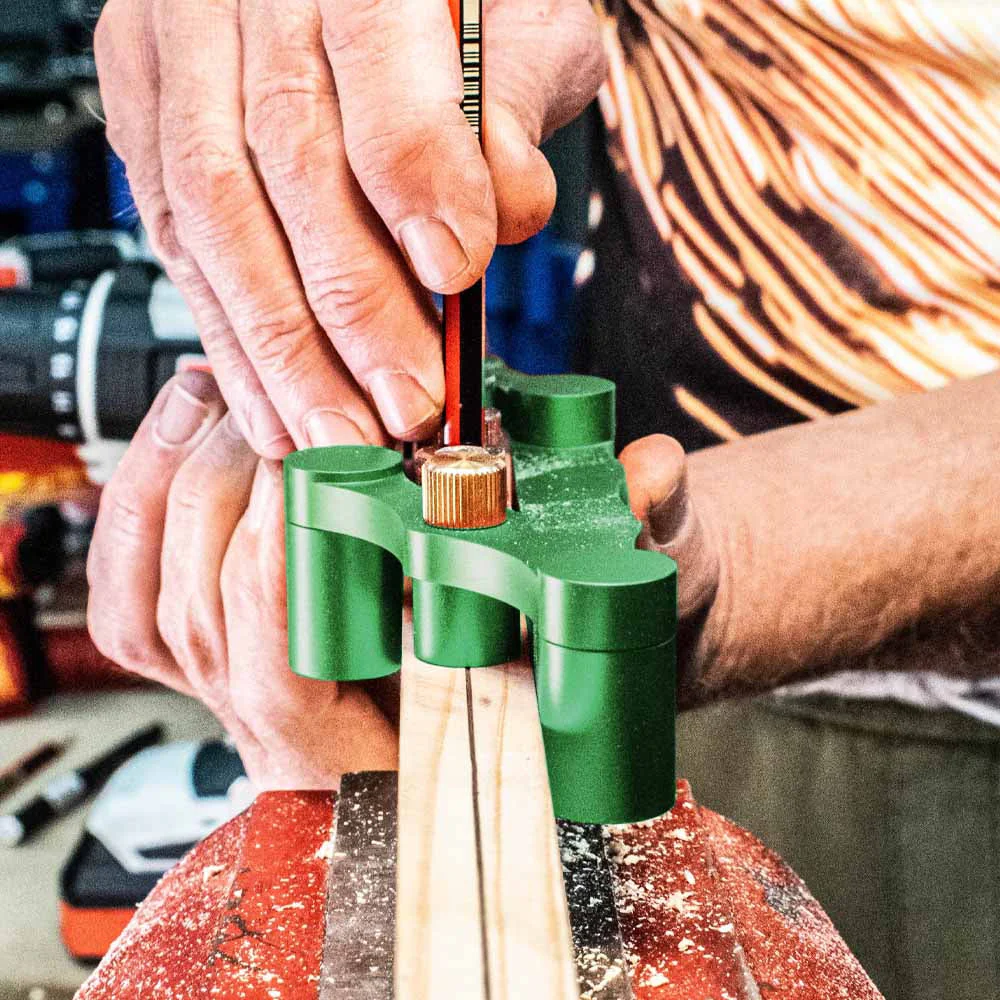

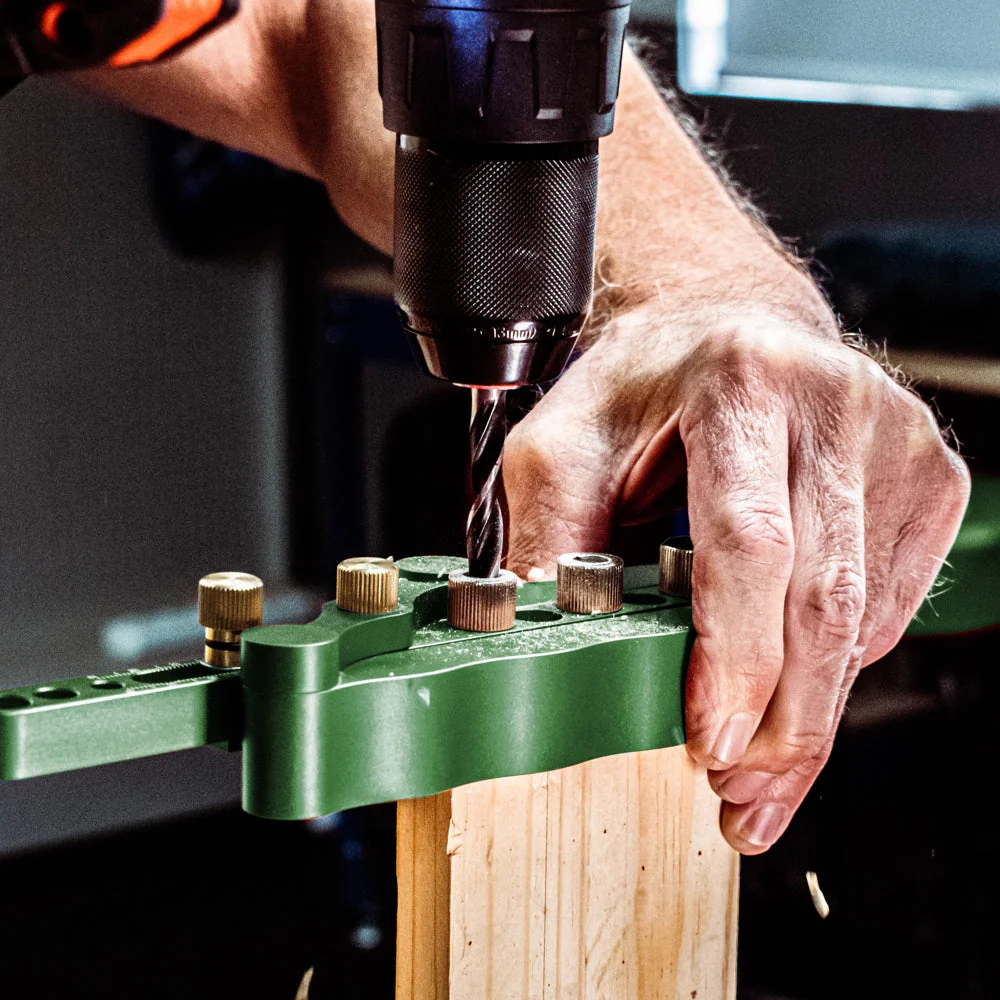

• Drilling of 6mm, 8mm & 10mm ø dowel holes, Scoring of 1mm and 2mm ø center lines.
• Good ergonomics, extremely simple and easy to use as well as versatile.
• High-quality and Durable Material - The joinery punch locator is aluminium alloy 6061+ steel HRC50(drill bushing) + brass (nut). High hardness, quality assurance, durable and long service life.
• High Precision - The joinery punch locator provides an improved version and comes with 6mm, 8mm and 10mm bushings and 1mm and 2mm scoring holes for making and marking different sizes of holes.
• Adjustable Stop - The joinery pin locators are specially designed with an adjustable stop which provides drilling
• Convenient and practical. With the joinery pin locators, the jig is convenient and practical for fast and accurate work. It is a great tool for both furniture factories and woodworking enthusiasts.

Specifications

Weight	794g
Product Material	Aluminium Alloy Body Tempered Steel Drill Bushings Brass Lock Nuts Aluminium Alloy Pin Locators
Finish	Green Aluminium Alloy with Anodic Oxidation Treatment
Specifications	3 x 6mm Drill Bushings 3 x 8mm Drill Bushings 3 x 10mm Drill Bushings 3 x Pin Locators – 6mm; 8mm & 10mm ø 2 x Scoring Holes - 1 x 1mm & 1 x 2mm Adjustable Stop - 0-40mm
Safety	Wear eye protection for wood shavings Wear gloves to protect hands
