Milescraft | Drill Fence For Drillmate Pro

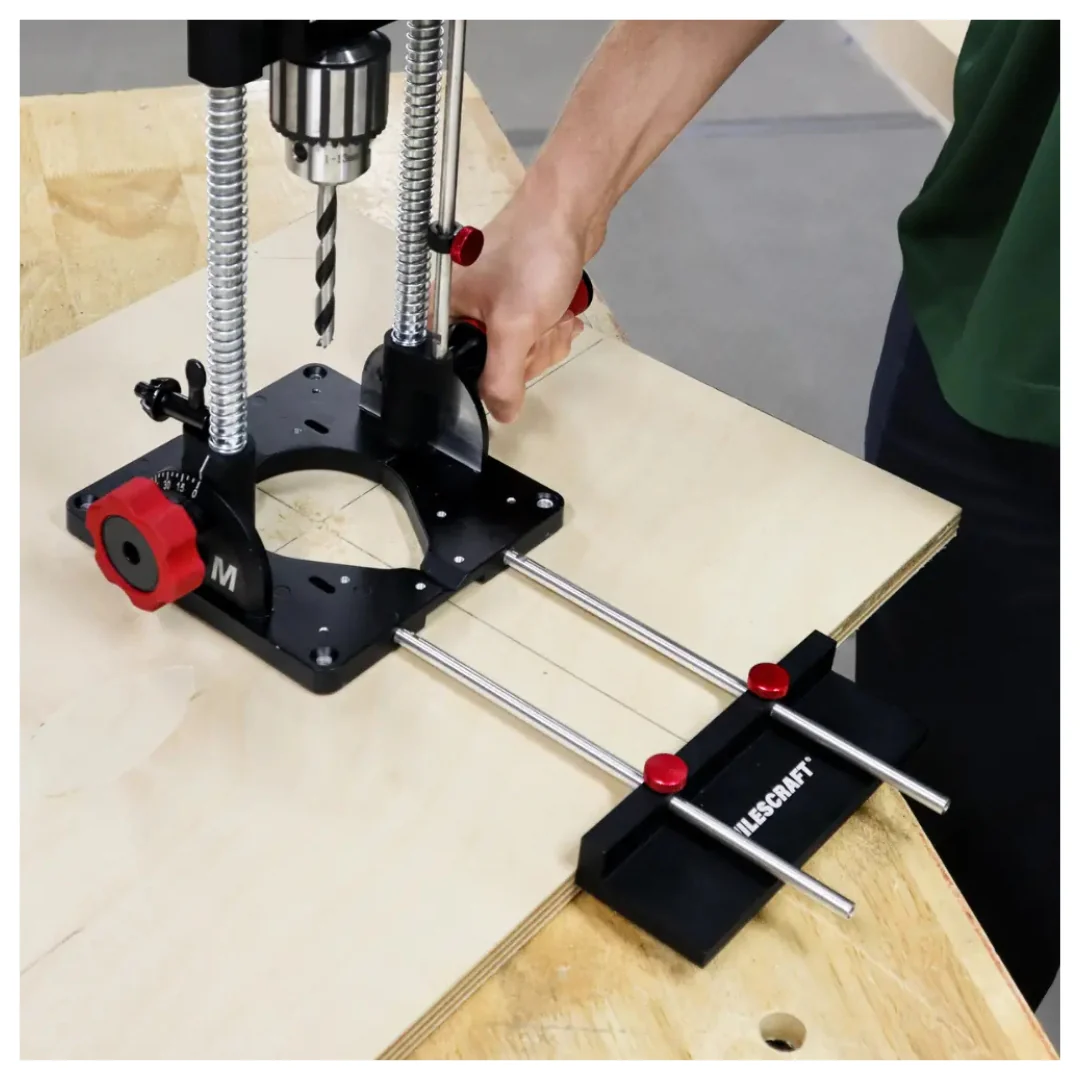

Increase the accuracy and performance of the DrillMatePRO™ with the Milescraft® DrillFence™.  This all-metal edge guide will help you drill series of holes consistently the same distance off of the edge of any piece of stock.  The all-metal construction helps reduce flex and the wide edge guide prevents movement when drilling. For drilling in the middle of wide boards, available extension rods can be purchased and attached end to end for as long as you need.

• Reduced Flexing
  • All metal construction keeps holes consistently spaced from edge of work piece
• Solid Contact
  • Wide metal edge guide keeps DrillMatePRO™ in place when drilling
• Depth of Drilling
  • Drill holes aligned from 1-7/16” to 12-5/8” (37mm to 320mm) from the edge of a board
• Expanded Range
  • Increase the reach of the DrillFence™ with optional extension rods

Exclusively for the 1348 DrillMatePRO™

Fence material	Machined Aluminum
Guide rod material	Stainless Steel
Range	1-7/16” – 12-5/8” (37mm – 320mm)
Expanded range	As Needed with Extra Rods
Fence width	7-1/8” (180.50mm)
Guide rod thickness	5/16” (8mm)
Guide rod length	9-13/16” (250mm)
Guide rod thread	M5 x .08
Guide rod spacing	3-5/32” (80mm)
