Milescraft | Dowel Jig Kit 82Pc Metric 1383

Milescraft JointMate Dowel Jig Kit

Everything in one set for quick dowel drilling

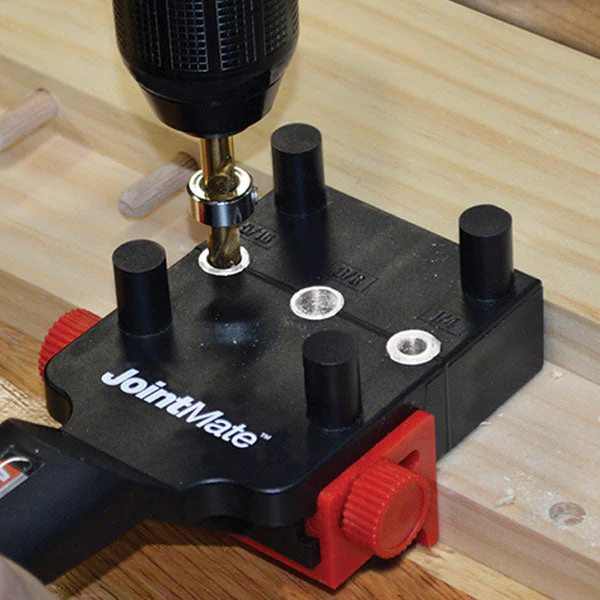

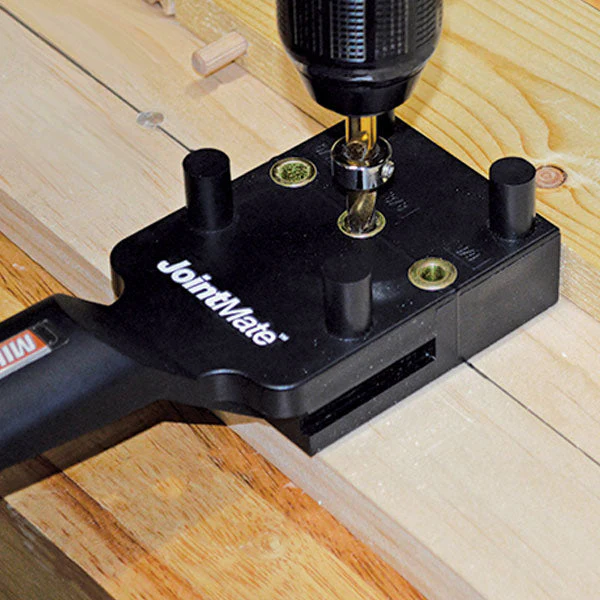

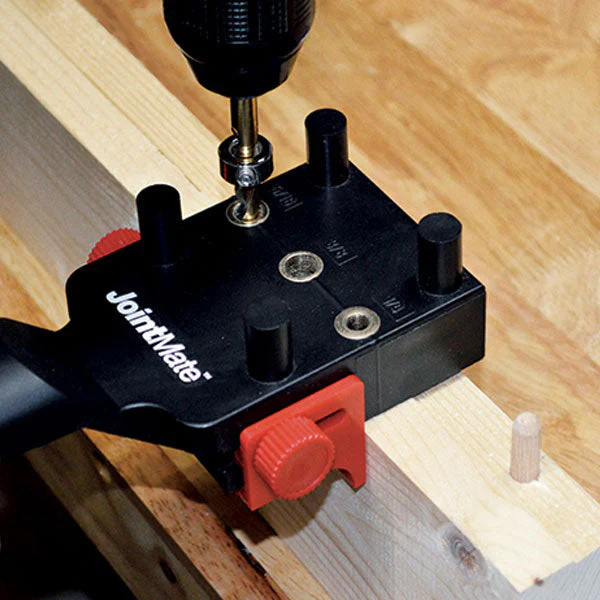

Dowel drilling made easy. With the template set for dowel drilling you have everything at hand: template, drill including depth adjustment rings, dowel markers, dowels in the usual sizes, as well as glue.

Advantages:

• No removal of chips necessary
• Dowel hole without screwdriver
• With centering aid for exact hole spacing
• suitable for dowel connections in all types of wood
• Guide stop quickly and easily mounted and set up
• for corner, longitudinal and surface joints
• can also be used for edge processing

Technical data:

• With 6 mm dowel hole for workpiece thickness from 13 - 16 mm
• With 8 mm dowel hole for workpiece thickness from 16 - 19 mm
• With 10 mm dowel hole for workpiece thickness from 19 - 32 mm

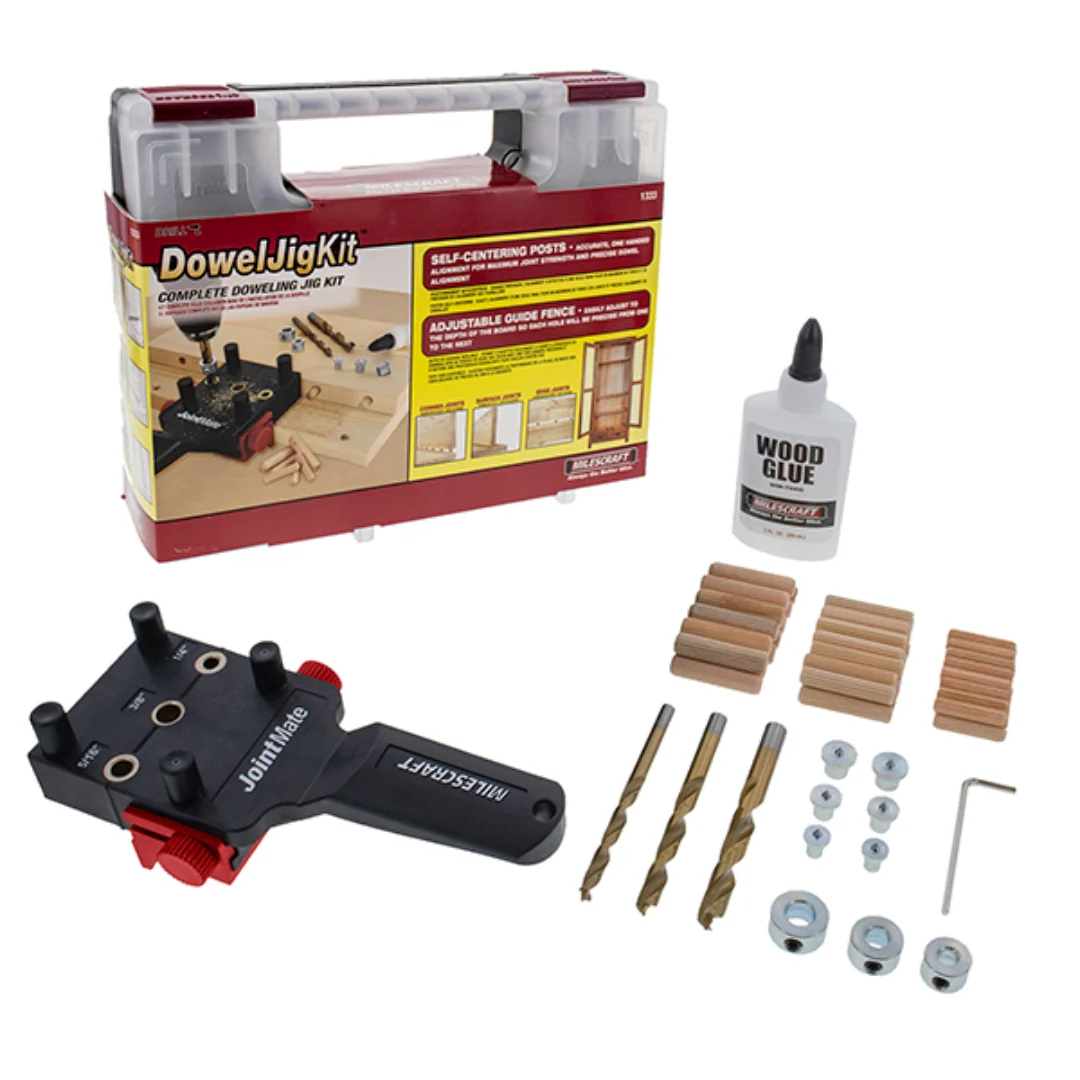

Delivery Includes:

• 1x drilling template JointMate
• 1x depth adjustment ring Ø 6 mm
• 1x depth adjustment ring Ø 8 mm
• 1x depth adjustment ring Ø 10 mm
• 2x dowel markers Ø 6 mm
• 2x dowel markers Ø 8 mm
• 2x dowel markers Ø 10 mm
• 1x hexagon key 2,5 mm
• 26x dowels Ø 6 mm
• 24x dowels Ø 8 mm
• 22x dowels Ø 10 mm
• 1x dowel drill Ø 6 mm
• 1x dowel drill Ø 8 mm
• 1x dowel drill Ø 10 mm
• 1x wood glue 59 ml
