GAV | Mini Drain Electronic 0.2-20l/hr
0.2-20l/hr Electronic Mini Drain
Model GAV MD20
Remove the condensate

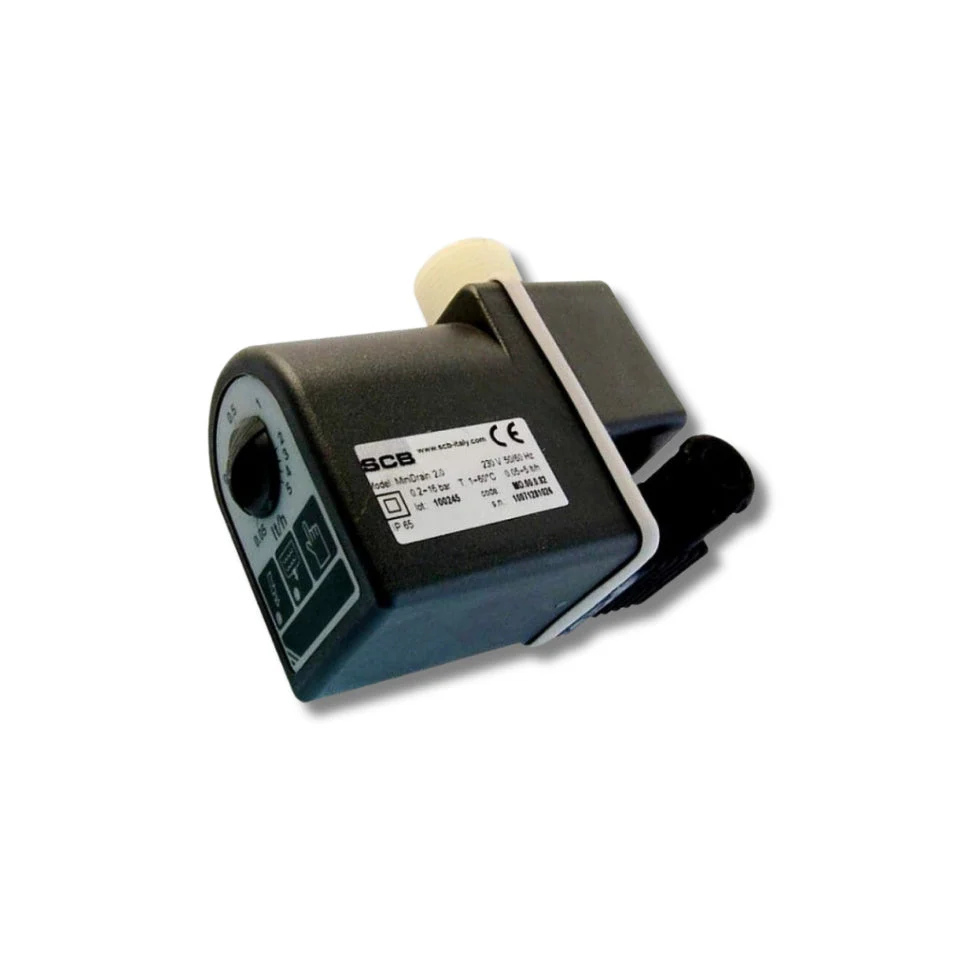

The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user-friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for "voltage on" and the other for "valve draining".
- Timed electronic drain: 0.2 to 20l/h capacity
- Suitable for intermediate compressors (200m3/h max delivery)
- Suitable for small dryers (400m3/h max)
Made in Italy
Original: $232.92
-70%$232.92
$69.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
0.2-20l/hr Electronic Mini Drain
Model GAV MD20
Remove the condensate
The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user-friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for "voltage on" and the other for "valve draining".
- Timed electronic drain: 0.2 to 20l/h capacity
- Suitable for intermediate compressors (200m3/h max delivery)
- Suitable for small dryers (400m3/h max)
Made in Italy
