Festool | Drill Stand MB 40-SET For Portable Drills
FESTOOL. Our passion for high-quality power tools has continued for more than 100 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.
The attachment for straight drilling. Anywhere.

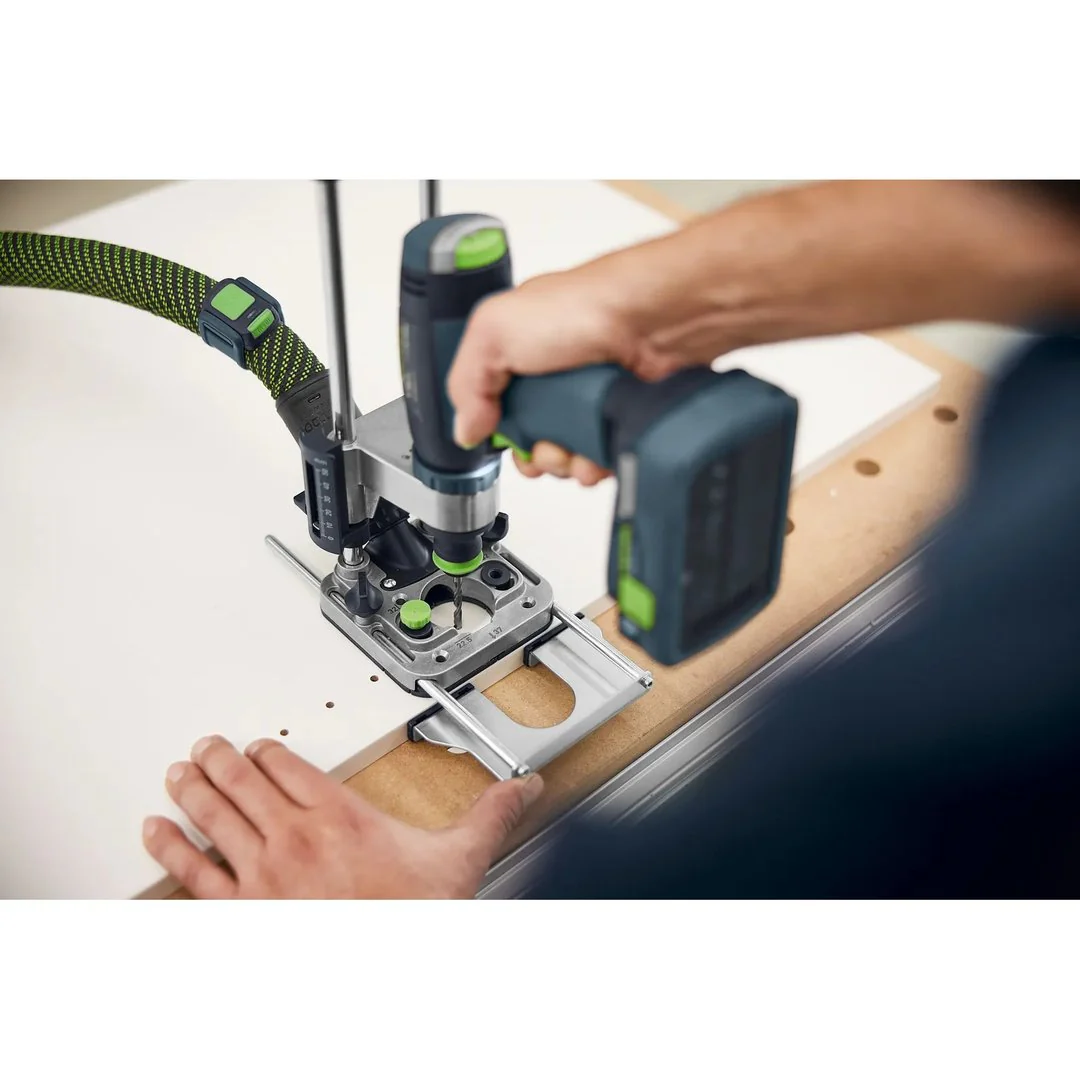

The MB 40 mobile drilling attachment is your companion when precision is required. As a compact drilling aid, it enables you to drill at right angles with pinpoint accuracy and repeat accuracy, no matter where you are working. Versatile stops and exact depth adjustment allow you to drill vertical holes, end face holes and a series of holes. For a good view of the drilling point, you can couple the dust extraction directly with the base plate. As a further FastFix attachment, it is ideally suited to your drilling applications in wood, metal and plastic, thus expanding the range of possible uses for your Festool cordless drills.
- Precise: Built to be robust and stable – for exact holes.
- Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.
- Versatile accessories: With parallel side fence and stop for end face holes, for drilling holes exactly and with repeat accuracy in panel edges, or guide rail adapter for drilling in long and wide workpieces.
- Exceptional: With hole series function for holes in the 32-type system.
- Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.
- Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.
- Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
- Sturdy: Rubberised base for precise alignment without slipping.
- Clearly organised: Compact and cleverly packed in the Systainer³.
Main applications
- Creating holes at a 90° angle
- Making short hole series in the System 32
- Drilled holes for fittings like cupboard hinges
- Holes for shelf support
- Drilling in wood, metal and plastic
- Drilling knot holes
- Assembly work
- Kitchen fitting
- Furniture manufacture
Technical data
| Holder | FastFix |
| Max. drilling diameter for softwood (Forstner drill bit) | 40.00 mm |
| Max. drilling diameter for softwood (auger bit) | 16.00 mm |
| BASE | 110 x 114 mm |
| Height | 312.00 mm |
| Setting range of depth stop | 0 - 50 mm |
| Max. screw diameter (templates/fixtures) | 4.00 mm |
| Stroke with depth stop, incl. spring | 187.00 mm |
| Stroke without depth stop, without spring | 203.00 mm |
| Dust extraction connection diameter | 27 mm |
| Product weight without accessories | 1.40 kg |

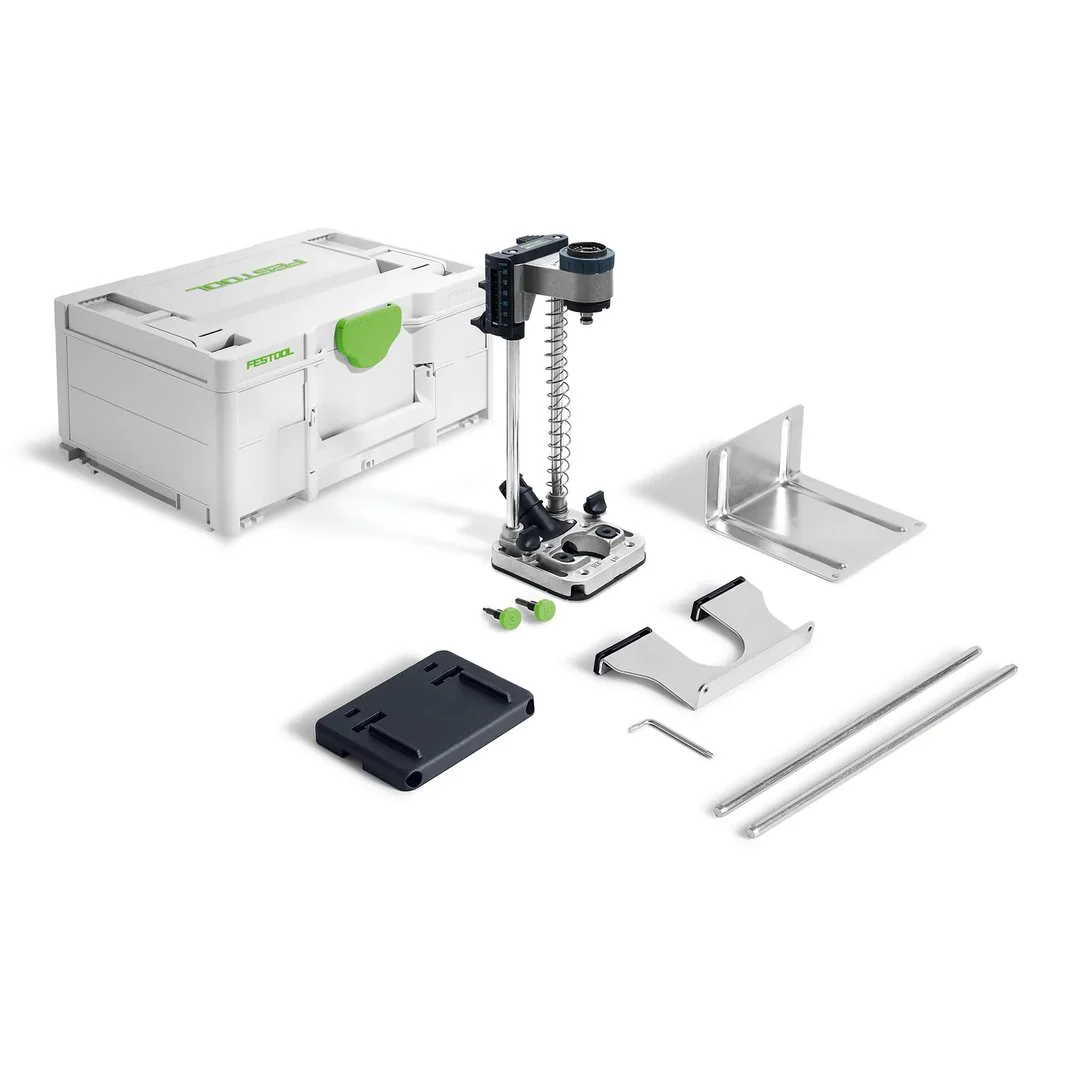

Items Included
- Guide rail adapter FSA-MB 40
- Stop set PA-MB 40
- hole series pin 5 mm
- hole series pin 3 mm
- TX 15 key
- Systainer³ SYS3 M 187
