Euroboor | Magnetic Base Drill 32mm 1000W + FREE Magnetic Baton

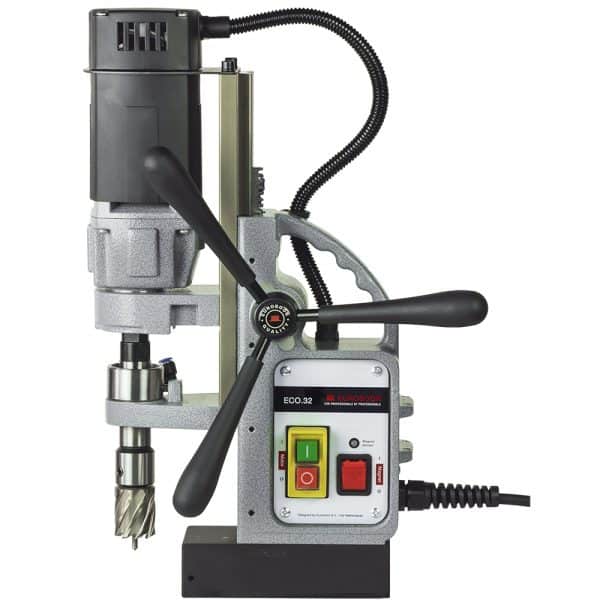

ECO.32 1000W 32mm Magnetic Base Drill
The compact Euroboor ECO.32 magnetic core drilling machine has a powerful single speed 1,000W motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to ø 13mm and countersinks up to 40mm. This light and reliable machine is a true addition for every workplace.
- One-speed gearbox
- Detachable spindle drive
- Integrated tool cooling and lubrication
- High-precision height adjustment for:
- Low maintenance
- Minimal wear correction
- Integrated slide for:
- High accuracy
- Enlarged lifecycle
- Minimal vibration
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Specifications
| Connection | |
|---|---|
| minimum diameter annular cutters (millimeter) | 12 |
| maximum diameter annular cutters (millimeter) | 32 |
| minimum diameter countersinking (millimeter) | 10 |
| maximum diameter countersinking (millimeter) | 40 |
| minimum diameter twist drills (millimeter) | 1 |
| maximum diameter twist drills (millimeter) | 13 |
| connection 1 model | inside |
| connection 1 size (millimeter) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (millimeter) | 150 |
| magnet length (millimeter) | 160 |
| magnet width (millimeter) | 80 |
| magnet height (millimeter) | 42 |
| minimum height (millimeter) | 370 |
| maximum height (millimeter) | 512 |
| length (millimeter) | 320 |
| width (millimeter) | 210 |
| height (millimeter) | 512 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | grease |
| magnetic force (kilogram) | 1500 |
| electric rotation speed adjustment | no |
| nett weight (kilogram) | 11 |
| system of measurement | mm (metric) |
| application | drilling, countersinking |
| Performance | |
| no-load rotation speed gear 1 (rotations per minute) | 775 |
| load rotation speed gear 1 (rotations per minute) | 400 |
| Supply | |
| motor power (Watt) | 1000 |
| total power (Watt) | 1050 |
| power supply frequency (Hertz) | 50 - 60 |
| power supply current | AC |
| power supply connection | EU plug according CEE 7/7 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
