DeWalt | Mitre Saw Sliding 250mm with XPS

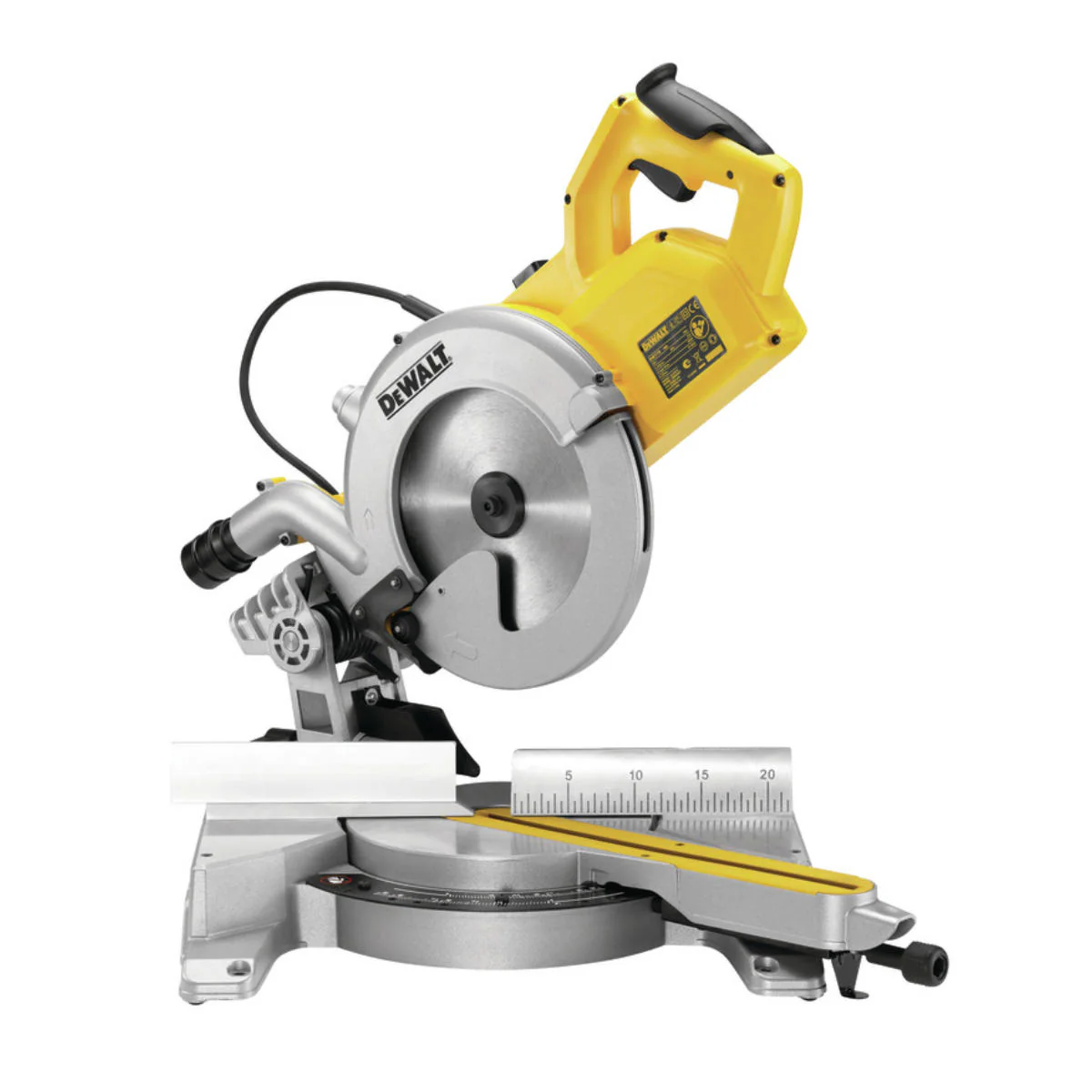

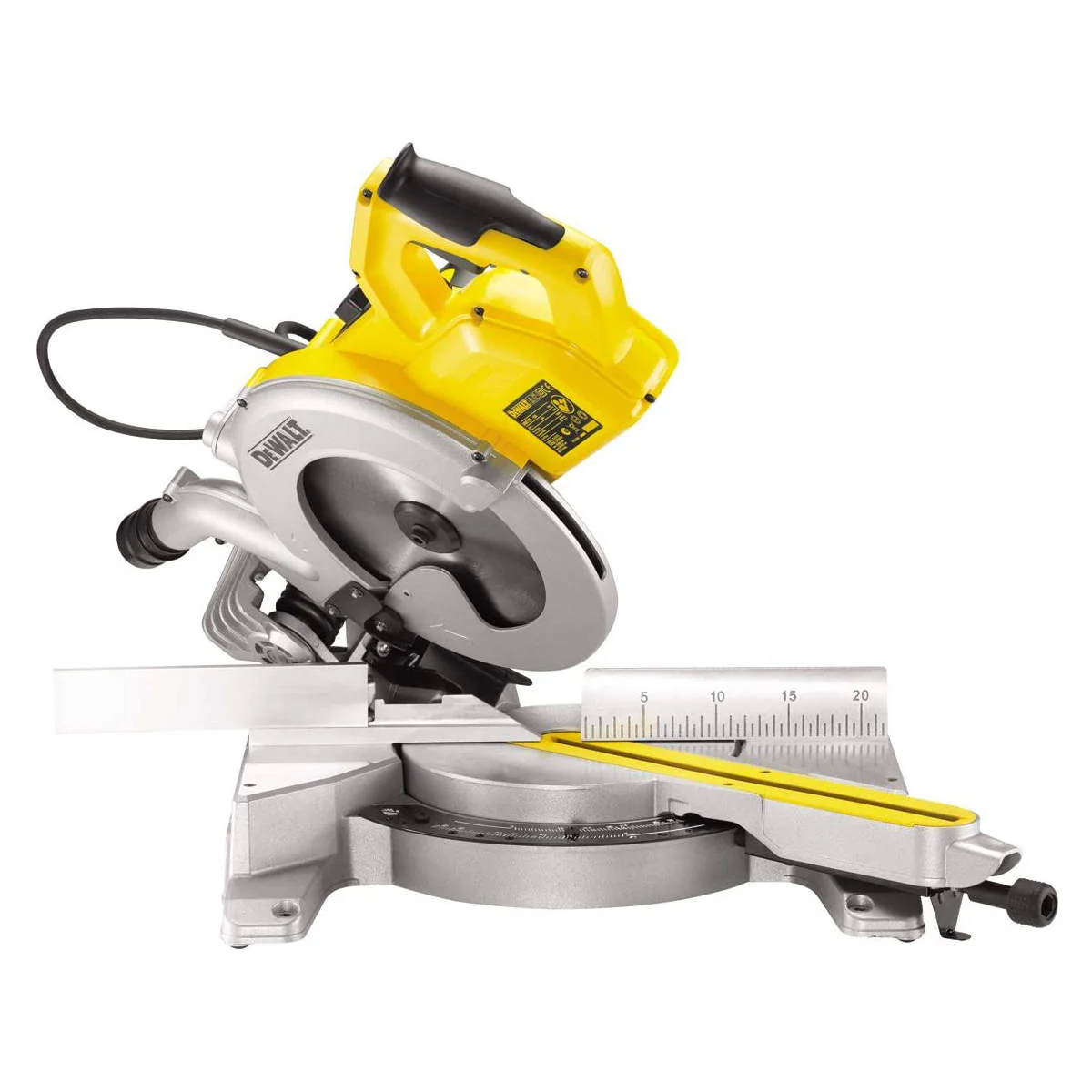

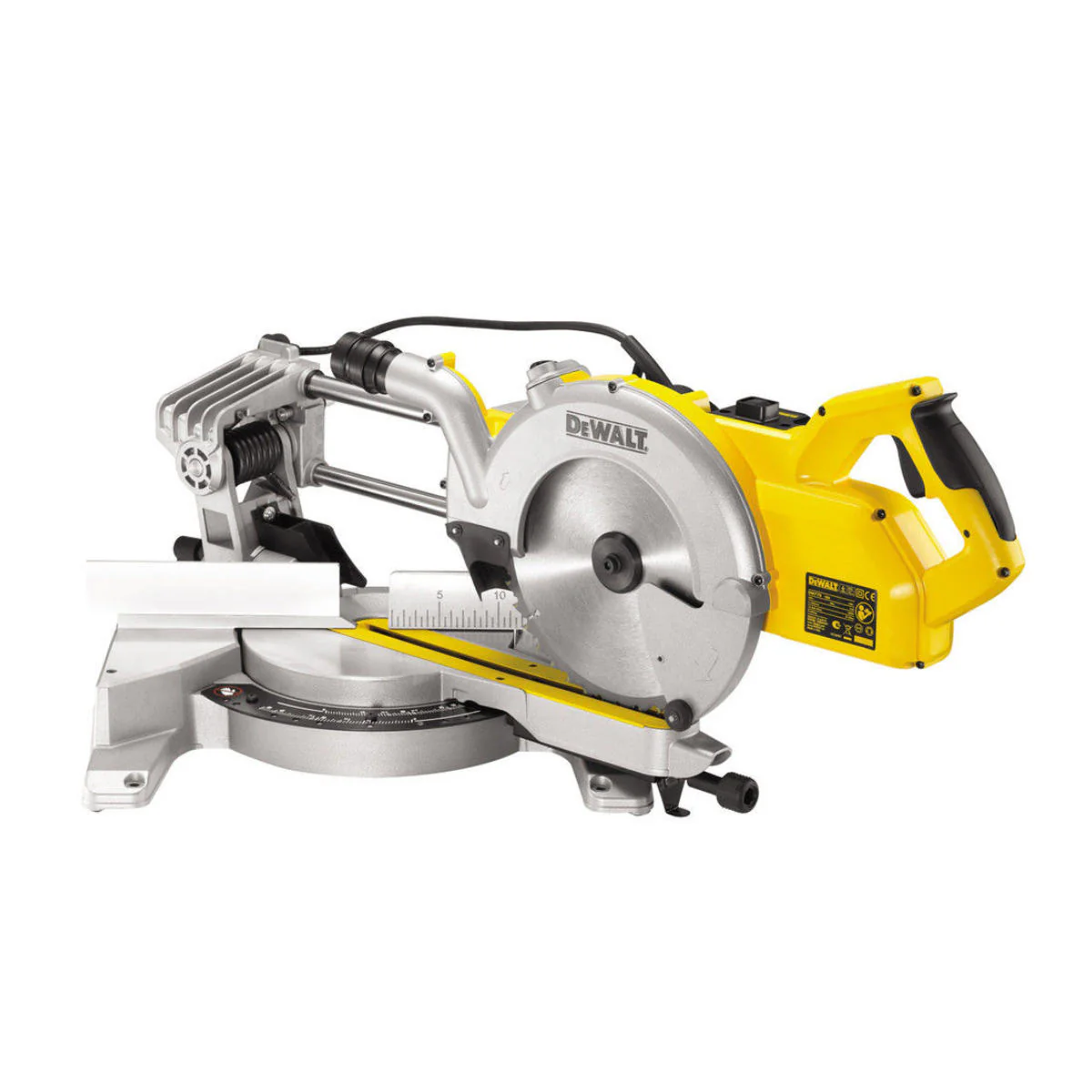

250mm Sliding Mitre Saw
The DEWALT DWS778 is robust, accurate, and lightweight. The DWS778 250mm mitre saw cuts up to 305mm wide board, and mitres up to 50° on the right and 50° on the left for unbelievable versatility. Its portability makes it a top choice for carpenters, deck builders and set builders who want maximum capacity on the jobsite.
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
- Built on classic pull saw design improved and updated for the modern user
- New 1850 Watt motor for powerful cutting in all materials
- Compact internal rail design for huge cutting capacity in a highly transportable format
- New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
- The base and fence have been machined to meet the accuracy requirements of the most demanding applications
- Sliding left hand fence with measuring scale for improved material support and management
- Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from air born dust particles minimises health risk over long periods
- Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Included
- 1x Mitre saw, 2x Hex keys 4/6 mm, 1x Saw blade, 1x Material clamp, 2x Base extension handles and installation hardware
Specifications
- Rating: Industrial
- Power input: 1850W
- No-load speed: 4300rpm
- Blade diameter: 250mm
- Blade bore: 30mm
- Cutting depth: 85mm
- Max. blade thickness: 1.75mm
- Max. kerf of the saw blades: 3mm
- Mitre positions, max. left: 50°
- Mitre positions, max. right: 50°
- Bevel position, max. left: 48°
- Compound mitre, bevel: 45°
- Compound mitre, mitre: 45°
- cross cut 90°: 85 x 305mm
- mitre 45°: 85 x 215mm
- mitre 50°: 85 x 198mm
- bevel 45°: 58 x 305mm
- bevel 48°: 54 x 305mm
- Dimensions: 465 x 615 x 390mm
