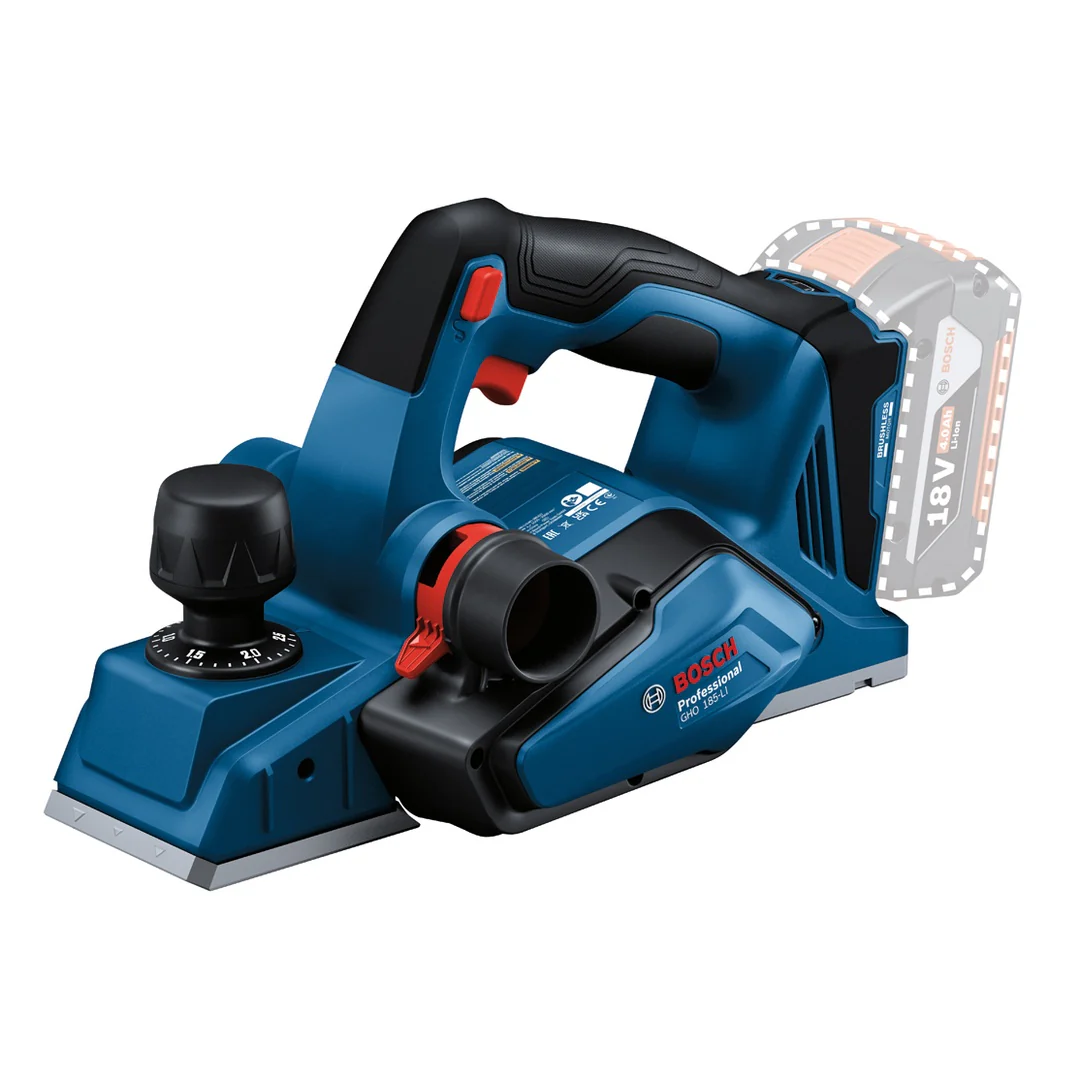

Bosch | GHO 185-LI Planer (Battery Excluded)

Positioning

• Ensured Flatness In Every Plane

User benefit

• Ensured consistent flatness in wood surface due to precision engineering design
• Fast blade change without adjustment thanks to dual-blade TC changing system
• Save time and effort with improved dust management and dual chipping
• Similar power performance to corded tools with it’s Bosch Brushless motor
• Working anywhere is easy enjoying cordless freedom

Product Highlights

• This tool is suitable for planing natural and processed wood materials and for removing material to create a flat surface.

Equipment & Application

• Ensured flatness in every plane

Additional Information

• It has a motor brake that stops the blade drum in less than a second, an increased battery run time thanks to its one-blade head system, and 3 different chamfer grooves. You find an extra blade storage slot in the tool that is already loaded with 1 extra blade in scope of supply. It also comes with a chip bag and a parallel guide. A constant electronic feature maintains the cutting speed when the tool comes under load.

Noise/vibration information

Noise level	The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 99 dB(A). Uncertainty K= 3 dB.
Tool dimensions (width)	151 mm
Tool dimensions (length)	289 mm
Tool dimensions (height)	185 mm
Battery voltage	18.0 V
No-load speed	14.000 rpm
Planing depth	0 – 2.6 mm
Rebating depth	0 – 9 mm
Planing width, max.	82 mm
Weight excl. battery	2.4 kg
BITURBO	No

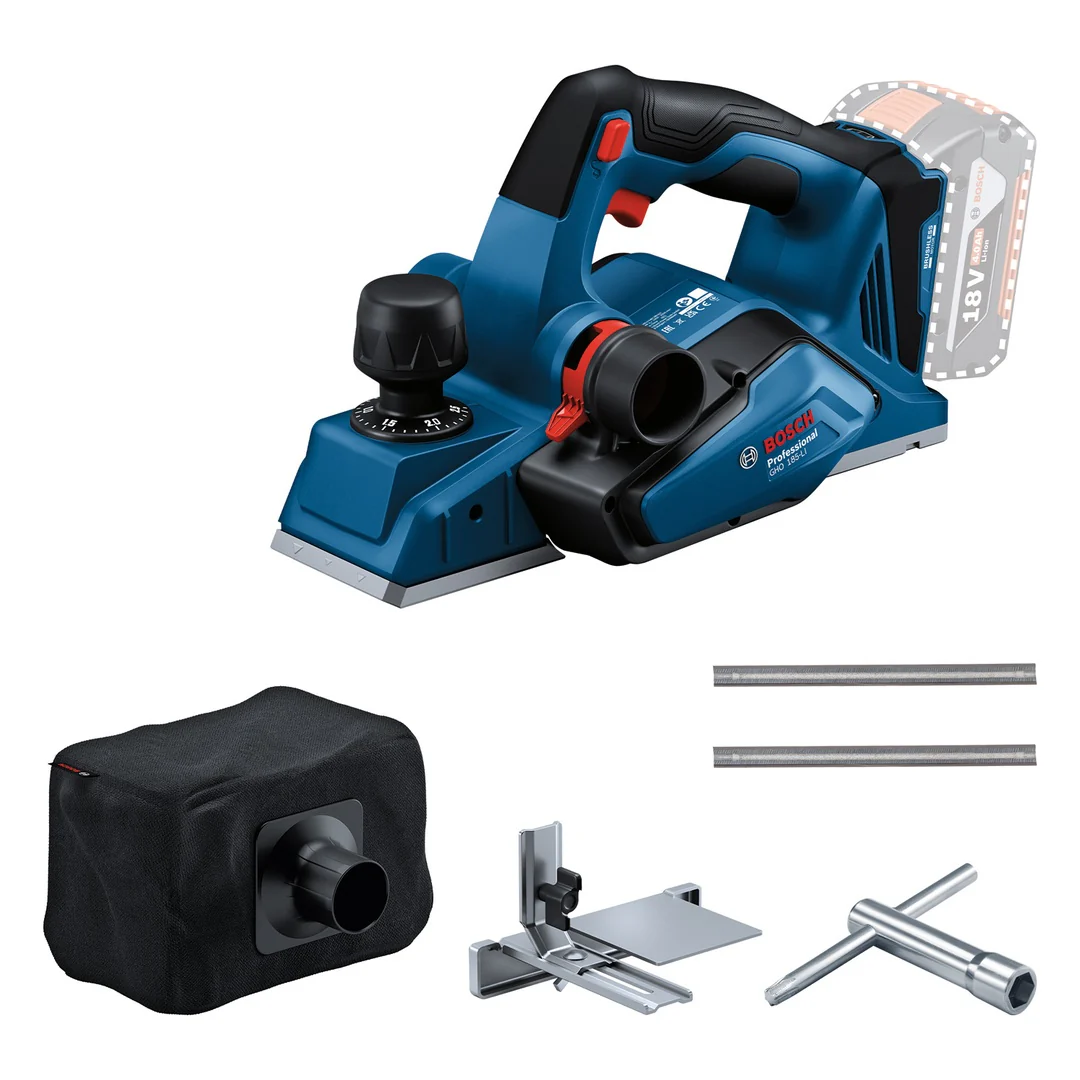

Includes

Assembly wrench 1 619 PC1 531	✓
Carton box	✓
Dust bag 1 619 PC1 532	✓
Guide bracket 1 619 PB4 338	✓
