Axminster Workshop | AP2920B Bandsaw

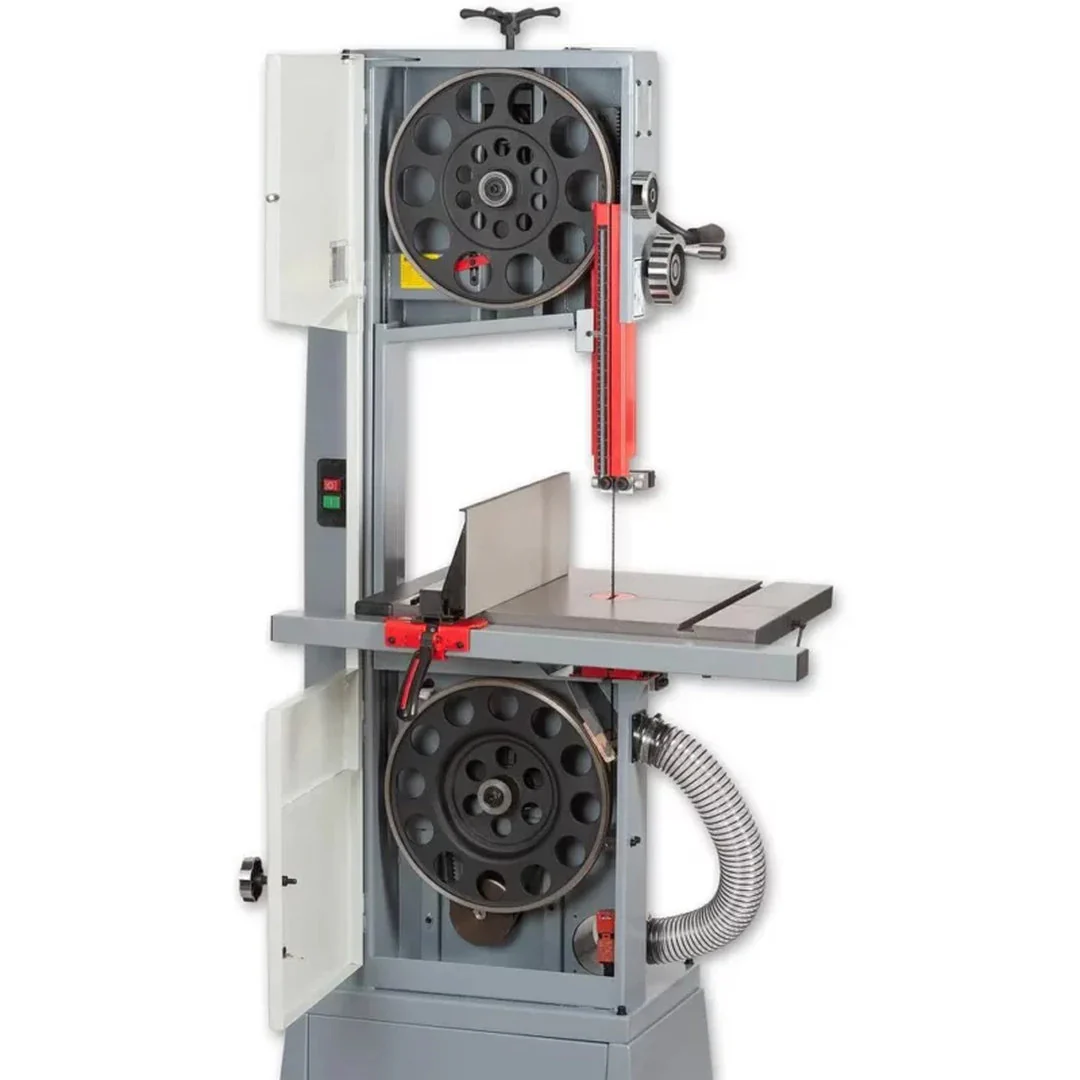

Professional by name, professional by nature. The AP2920B floor standing bandsaw represents great value, whether in a busy workshop or for a woodworker looking for a larger capacity machine. The 1.7kW induction motor easily copes with the 300mm max cutting height. The 355mm diameter cast iron wheels with hard rubber tyres, add to the smooth cutting action.

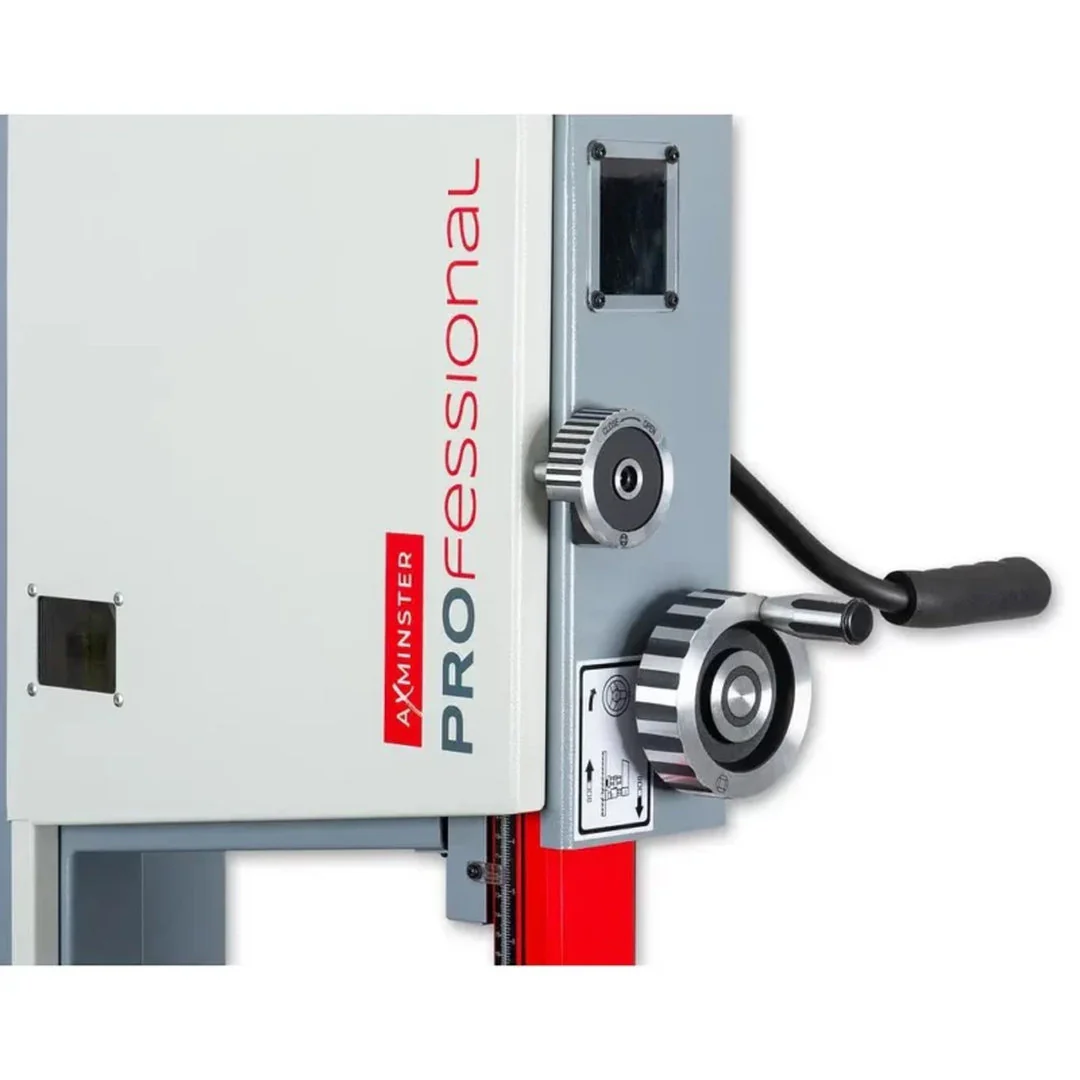

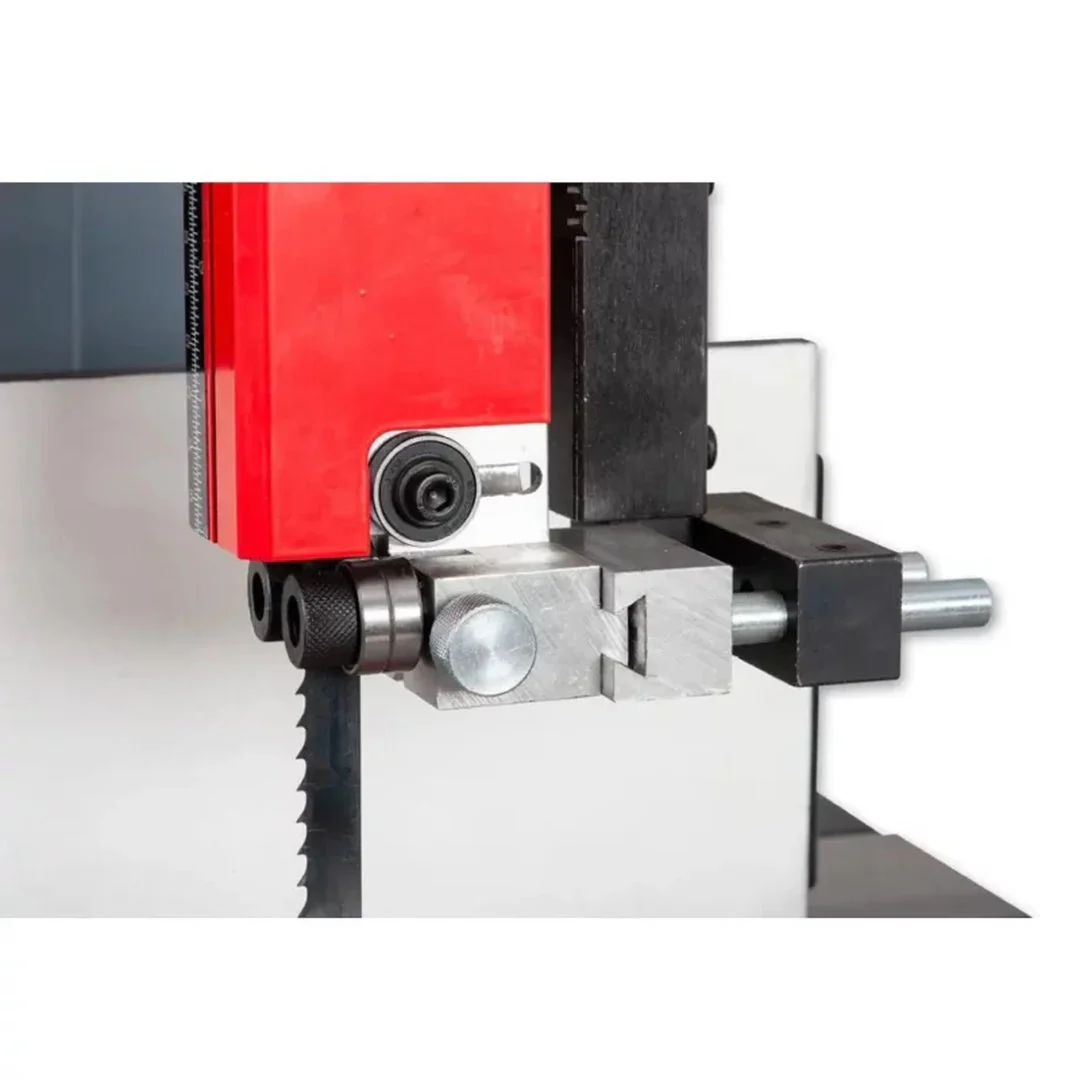

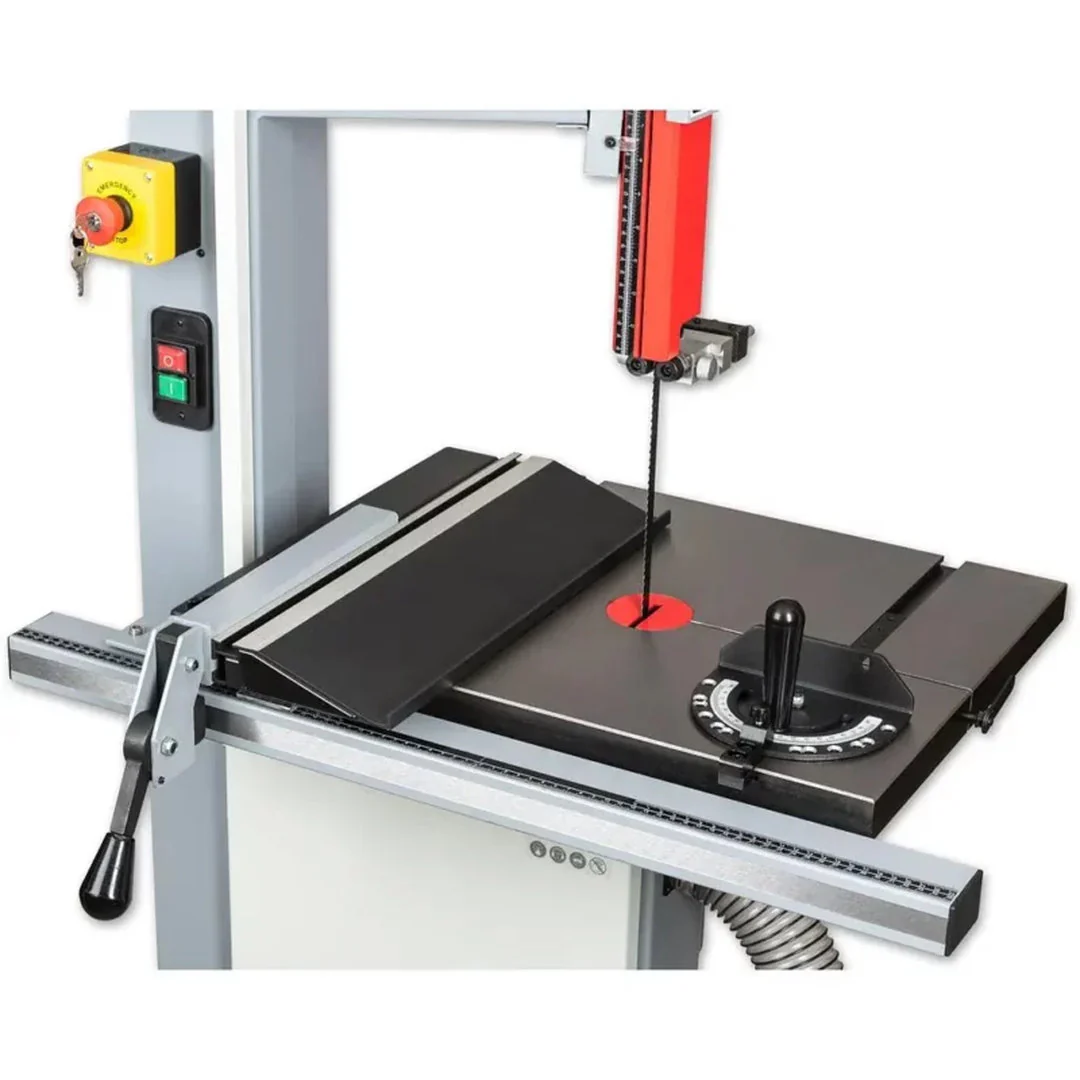

The smooth ground, cast iron table tilts up to 45° and features mitre fence slots on both sides of the blade. The upper blade guide has rack and pinion rise and fall for ease of adjustment.

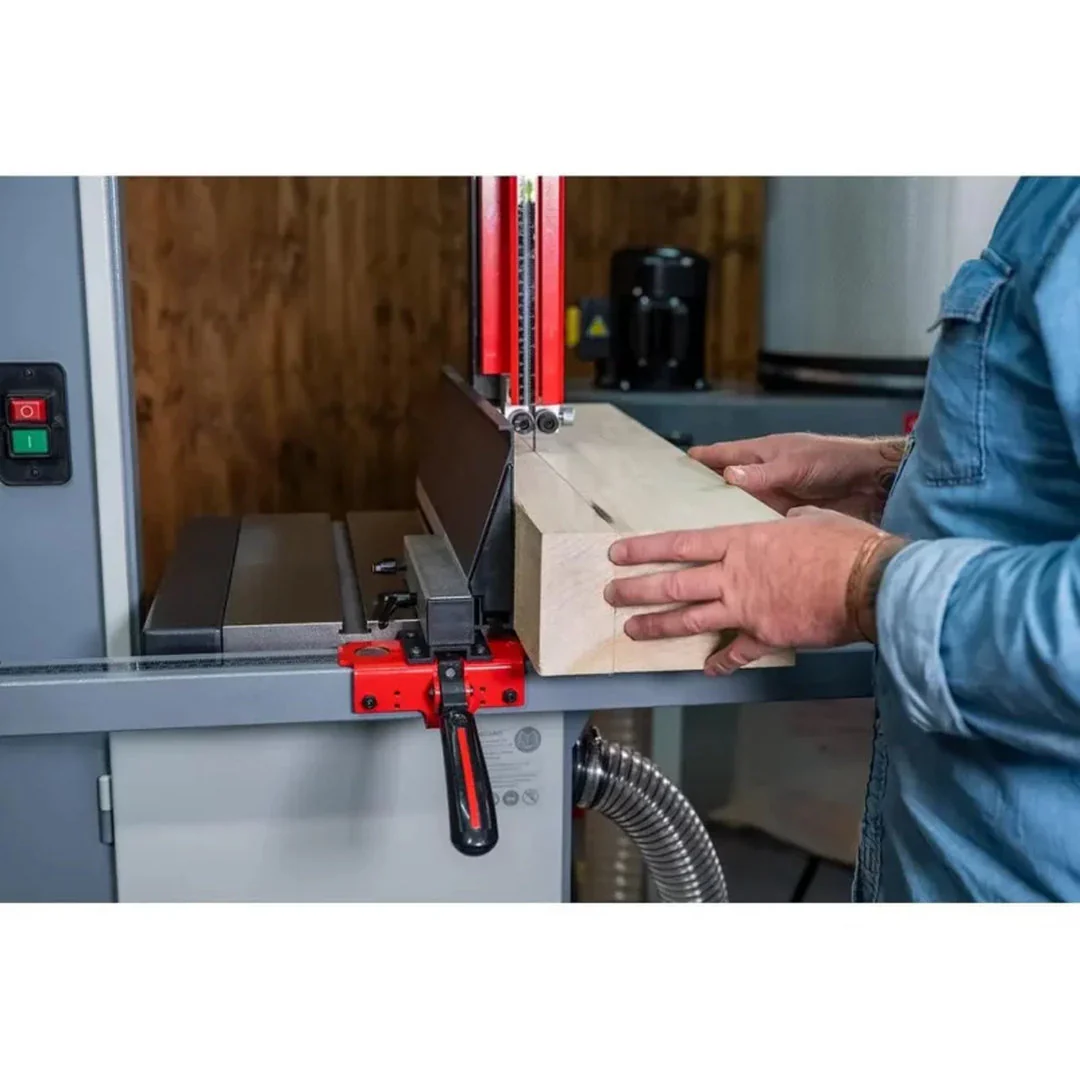

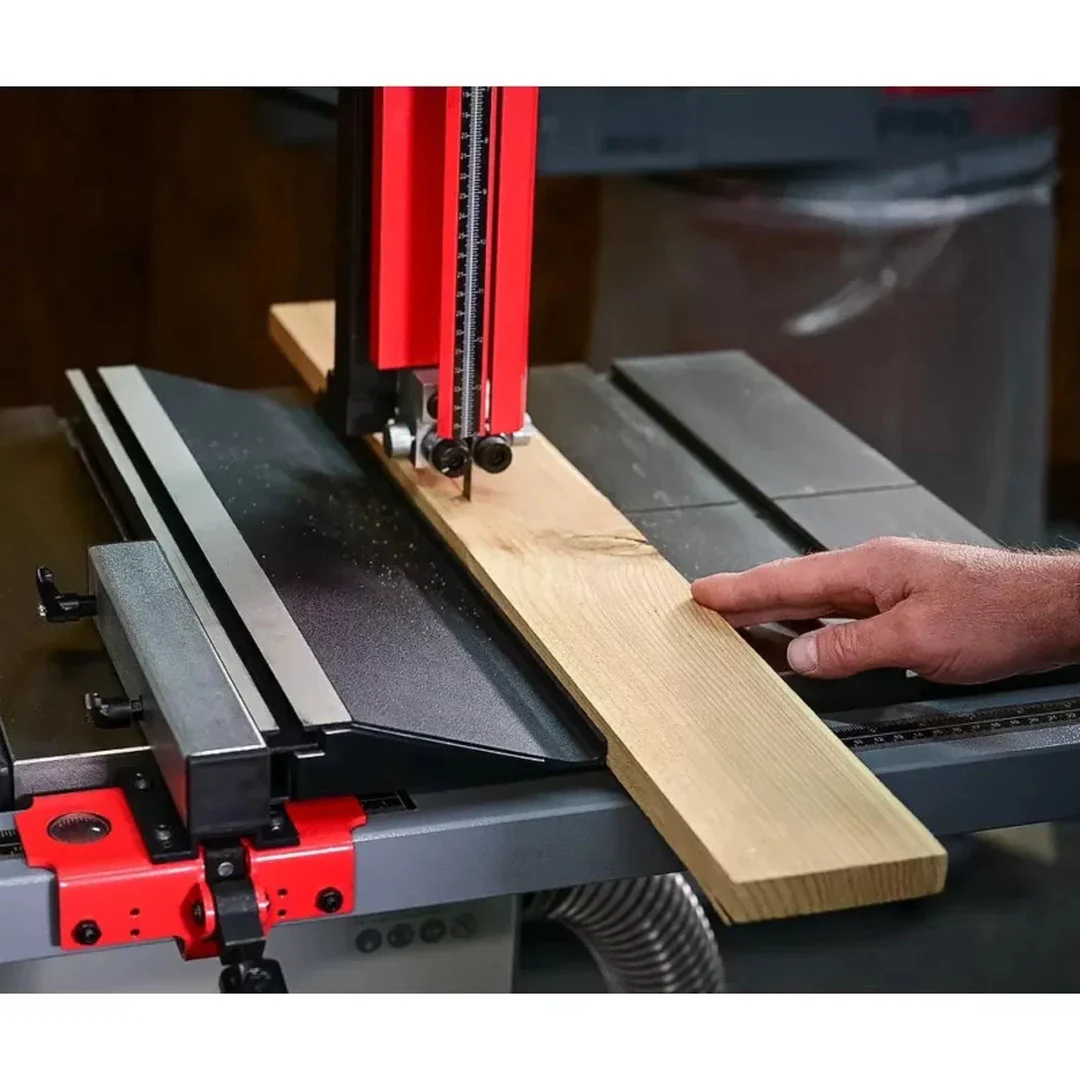

The rip fence locks positively and has a Hi/Lo auxiliary fence. ‘Hi’ for full support when deep ripping or ‘Lo’ when cutting thin section timber.

The quick tension release makes blade changing straightforward. Fully adjustable blade tensioning and tracking ensure precise cutting action.

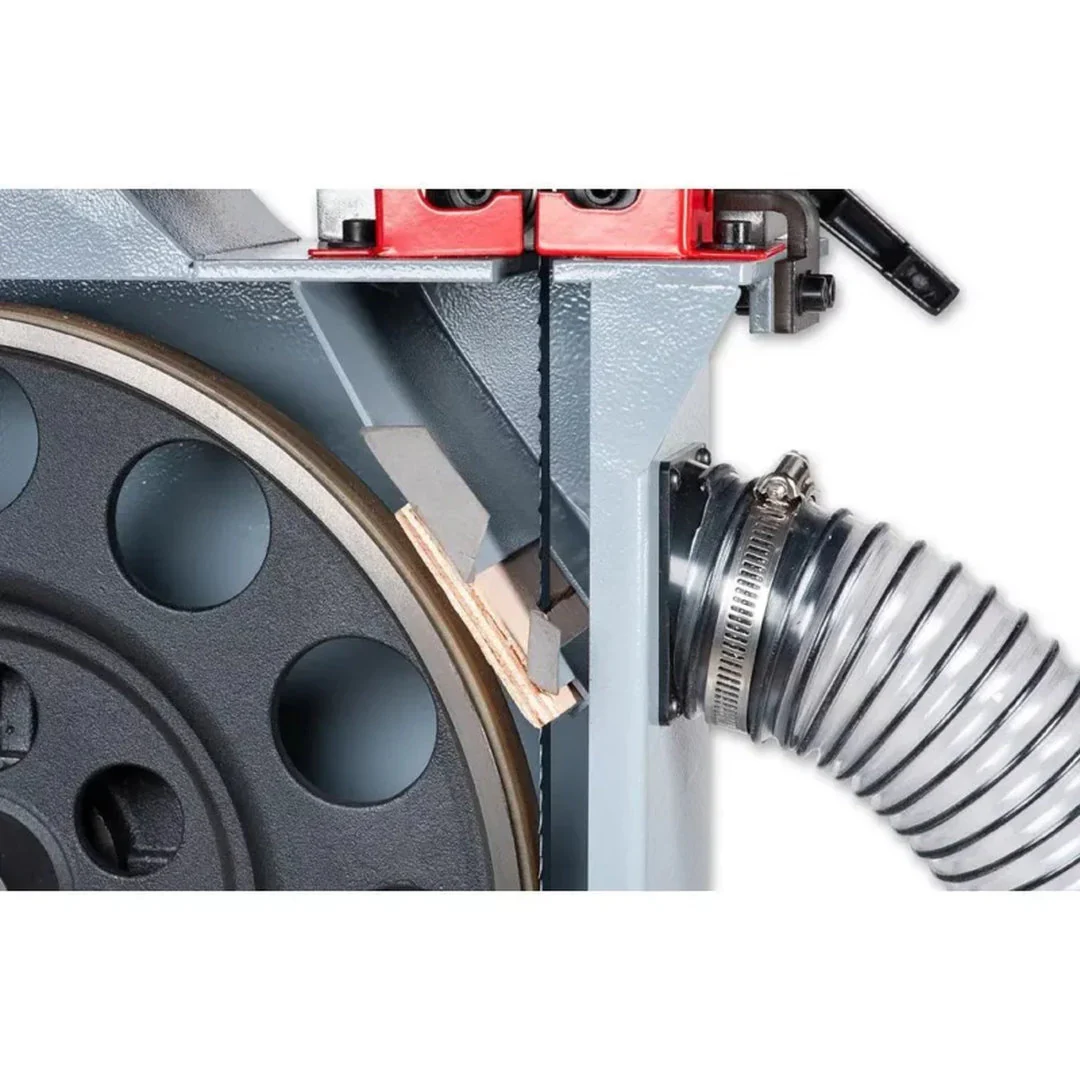

Dual dust extraction is efficient via a 63mm outlet under the table linked to a 100mm outlet by the bottom wheel.

Supplied with a premium mitre fence with useful pre-set angle stops. Also supplied with blade – 2,920mm x 12mm x 6tpi.

Key Features

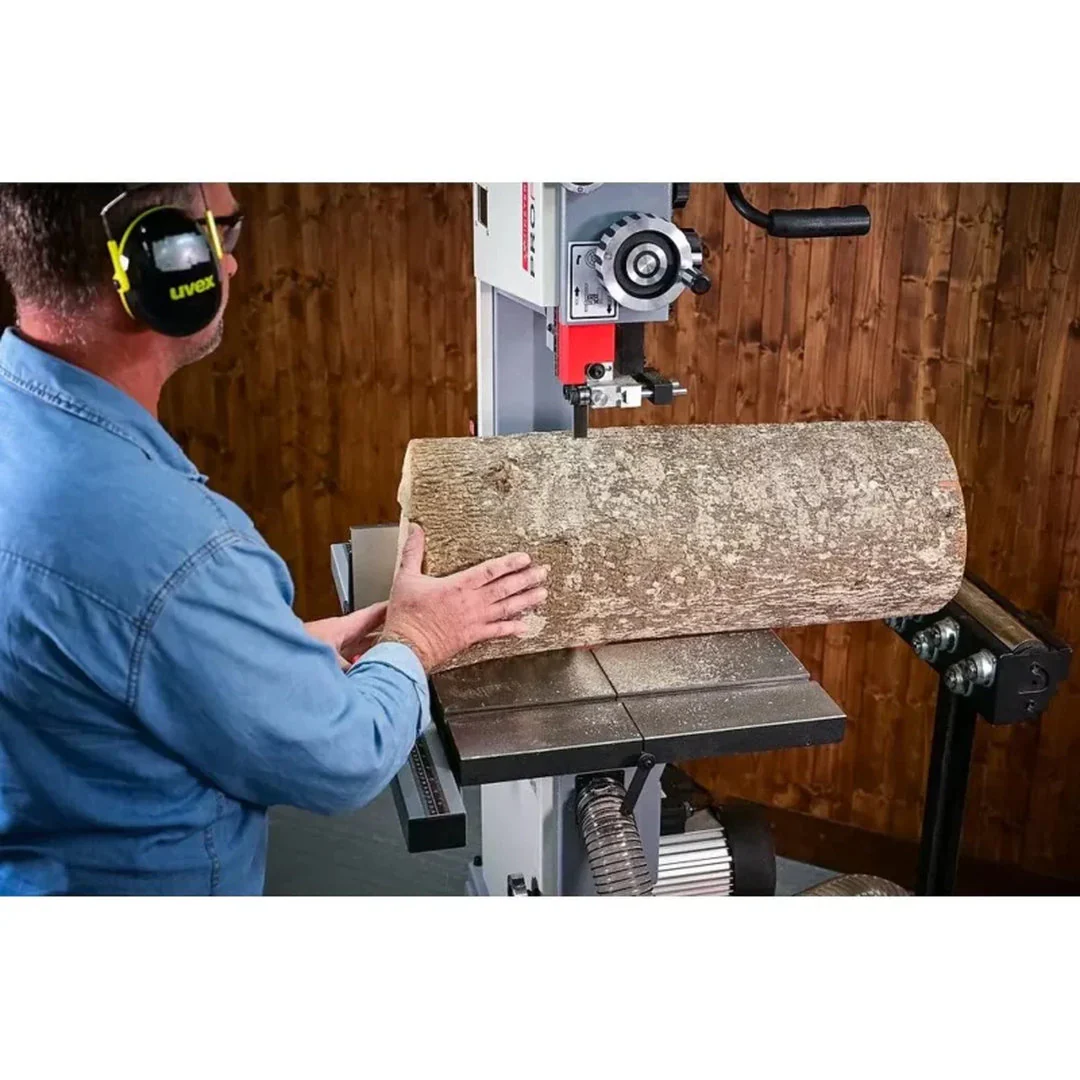

• Large capacity up to 300mm max cutting height
• Tension release lever for straightforward blade changes
• Efficient, two point dust extraction via dual outlet

Specifications

Bandsaw Blade Length	2,920 mm (115″)
Bandsaw Wheel Diameter	355 mm
Blade Speed	800 m/min
Blade Width MinMax	3 mm to 19 mm
Dust Extraction Outlet	100 mm & 63 mm
EAN Barcode	5052511127535
Max Cutting Height	300 mm
Max Width of Cut	345 mm
Min Extraction Airflow Required	1,200 m³/hr
Model	AP2920B
Nett Weight	122 kg
Overall L x W x H	760 mm x 875 mm x 1,910 mm
Power	1.7 kW
Rating	Trade/Professional
Sound Power Level LwA [Uncertainty K]	90 dB(A) [3.0 dB]
Sound Pressure Level LpA [Uncertainty K]	72.5 dB(A) [3.0 dB]
Table Height	1,015 mm
Table Height on Stand	N/A
Table Size	440 mm x 540 mm
Table Tilt	0° – 45°
Voltage	230 V

Axminster 3 Year Guarantee

Look for the icon

It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine

Covered by the Axminster 3 year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. Must be regularly maintained and serviced annually. Guarantee is void when used for industrial use or as part of a production line.

Keep your receipt

You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour

So sure are we of the quality, we cover all parts and labour free of charge for three years.

The 3 year guarantee covers parts and labour providing:

• You have purchased the correct product for your intended purpose in accordance with our classification
• The product is operated correctly
• You have maintained and serviced the product in accordance with the instructions (proof may be required)

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes
• Consumable items e.g., original blades, knives, drive belts or abrasives
• Issues identified due to normal wear and tear, misuse and neglect
• The product has been operated with blunt/incorrect tooling
• The product has been modified
