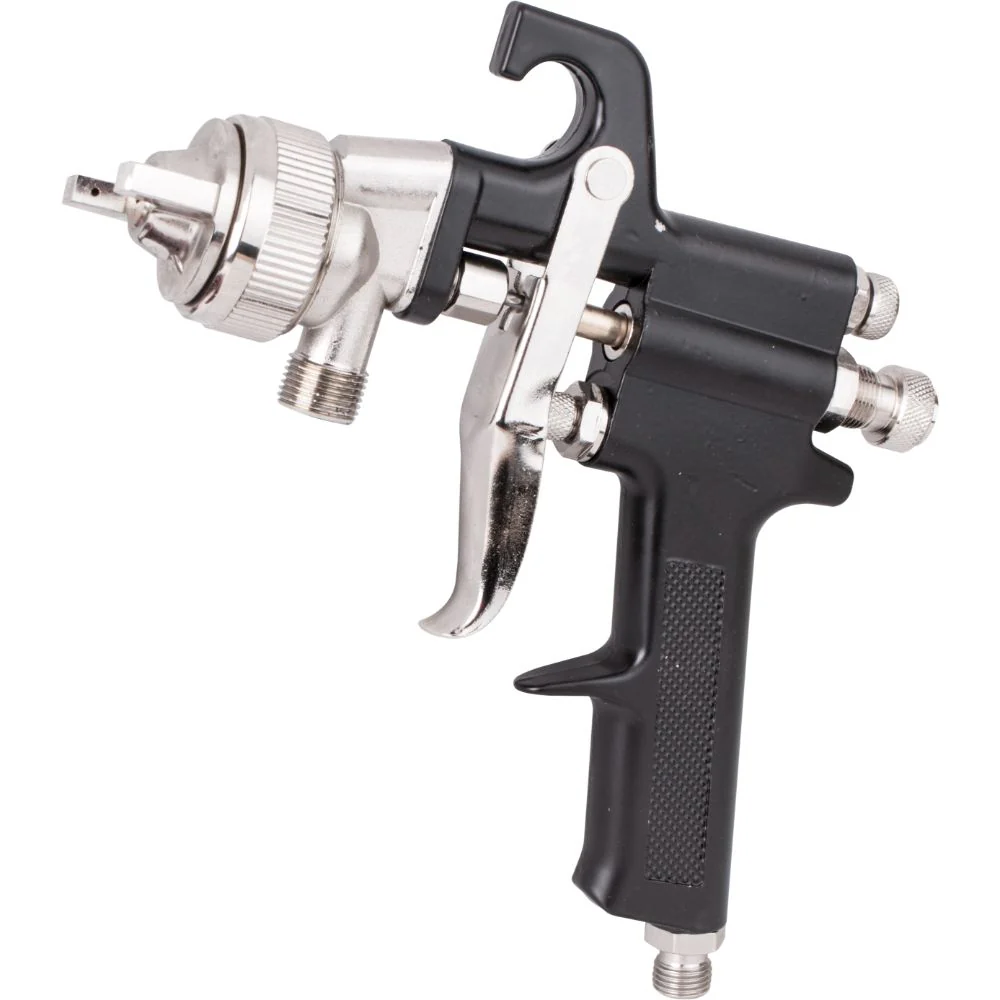

AirCraft | Spray Gun (Only) for Paint Pot 2.2mm Nozzle
Spray Gun
- The spray gun is excellent for commercial painting where a large amount of spraying is required
- Care should be taken not to use pressure feed spray guns with catalyst/hardener based paints
- Refer to paint manufacturer's data sheet
Tips and techniques
- When spray finishing, it's always advisable to keep the spray gun parallel to the workpiece surface
- The distance from the surface of the workpiece should be the width of the spray pattern
- The lower the pressure of the air, the lower the chance to have bounce-back (overspray)
- The pressure should only be increased when the spray pattern is uneven - paint focused in the middle when the fan setting is wide
Specifications
| Description | Specification |
| Working pressure | 3.0 - 4.0 Bar |
| Nozzle | 2.2mm |
| Feed | Pressure feed |
| Pattern width | 180 - 230mm |
| Air consumption | 170 - 250l/min |
$12.61
Original: $42.03
-70%AirCraft | Spray Gun (Only) for Paint Pot 2.2mm Nozzle—
$42.03
$12.61Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Spray Gun
- The spray gun is excellent for commercial painting where a large amount of spraying is required
- Care should be taken not to use pressure feed spray guns with catalyst/hardener based paints
- Refer to paint manufacturer's data sheet
Tips and techniques
- When spray finishing, it's always advisable to keep the spray gun parallel to the workpiece surface
- The distance from the surface of the workpiece should be the width of the spray pattern
- The lower the pressure of the air, the lower the chance to have bounce-back (overspray)
- The pressure should only be increased when the spray pattern is uneven - paint focused in the middle when the fan setting is wide
Specifications
| Description | Specification |
| Working pressure | 3.0 - 4.0 Bar |
| Nozzle | 2.2mm |
| Feed | Pressure feed |
| Pattern width | 180 - 230mm |
| Air consumption | 170 - 250l/min |
