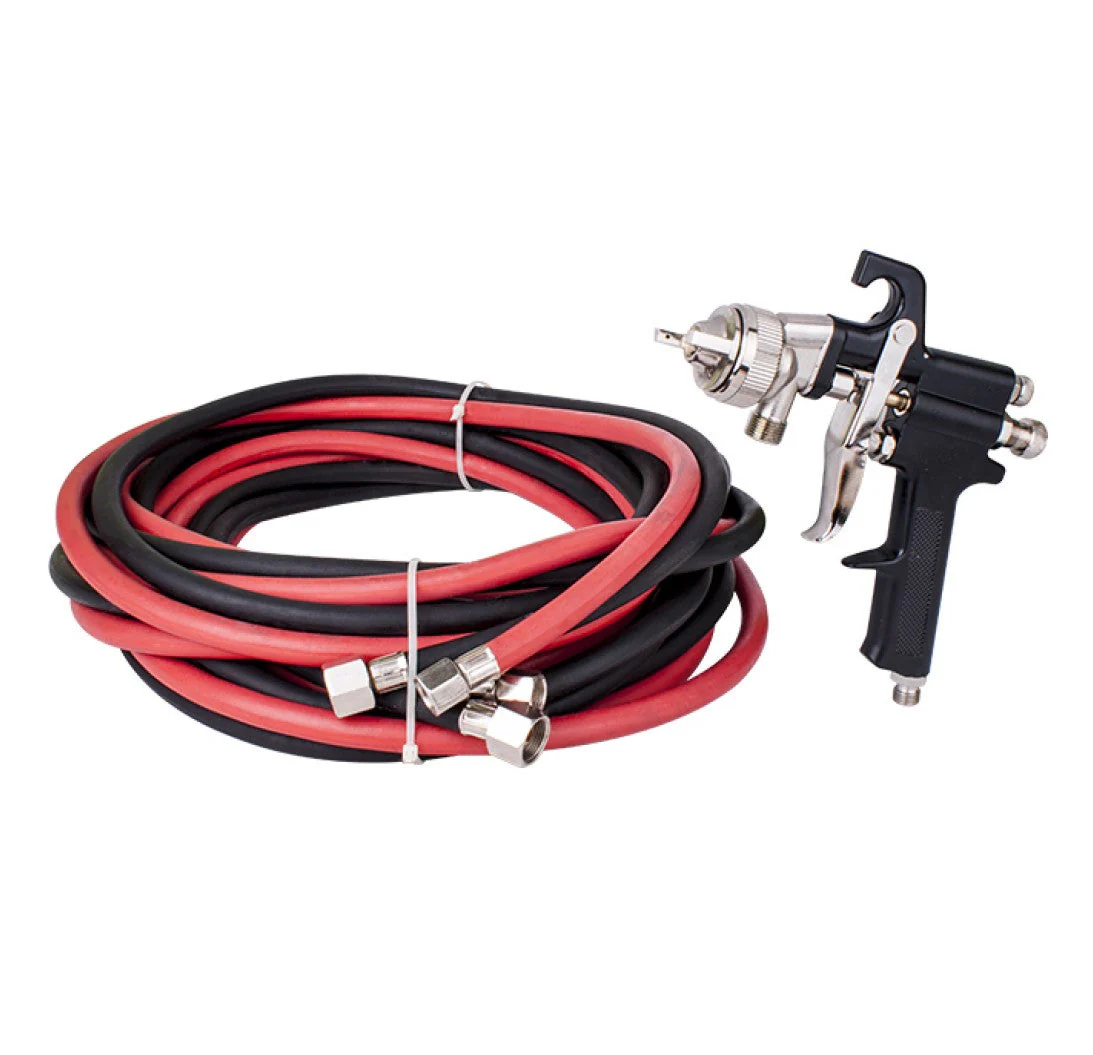

AirCraft | Spray Gun & 7.5m Hose for Paint Pots No Cup PQ2 2.2mm

Pressure feed spray gun and hose for paint pot - Ø 2.2mm

• The spray gun is excellent for commercial painting where a large amount of spraying is required
• 7.5m red air hose and black fluid hose included
• Care should be taken not to use pressure feed spray guns with catalyst/hardener based paints
• Refer to paint manufacturer's data sheet

Tips and techniques

• When spray finishing, it's always advised to keep the spray gun parallel to the workpiece surface
• The distance from the surface of the workpiece should be the width of the spray pattern
• The lower the pressure of the air, the lower the chance to have bounce-back (overspray)
• The pressure should only be increased when the spray pattern is uneven - paint focused in the middle when the fan setting is wide





Specifications

Description	Specification
Working pressure	3.0 - 4.0 Bar
Nozzle	2.2mm
Feed	Pressure feed
Pattern width	180 - 230mm
Air consumption	170 - 250l/min
