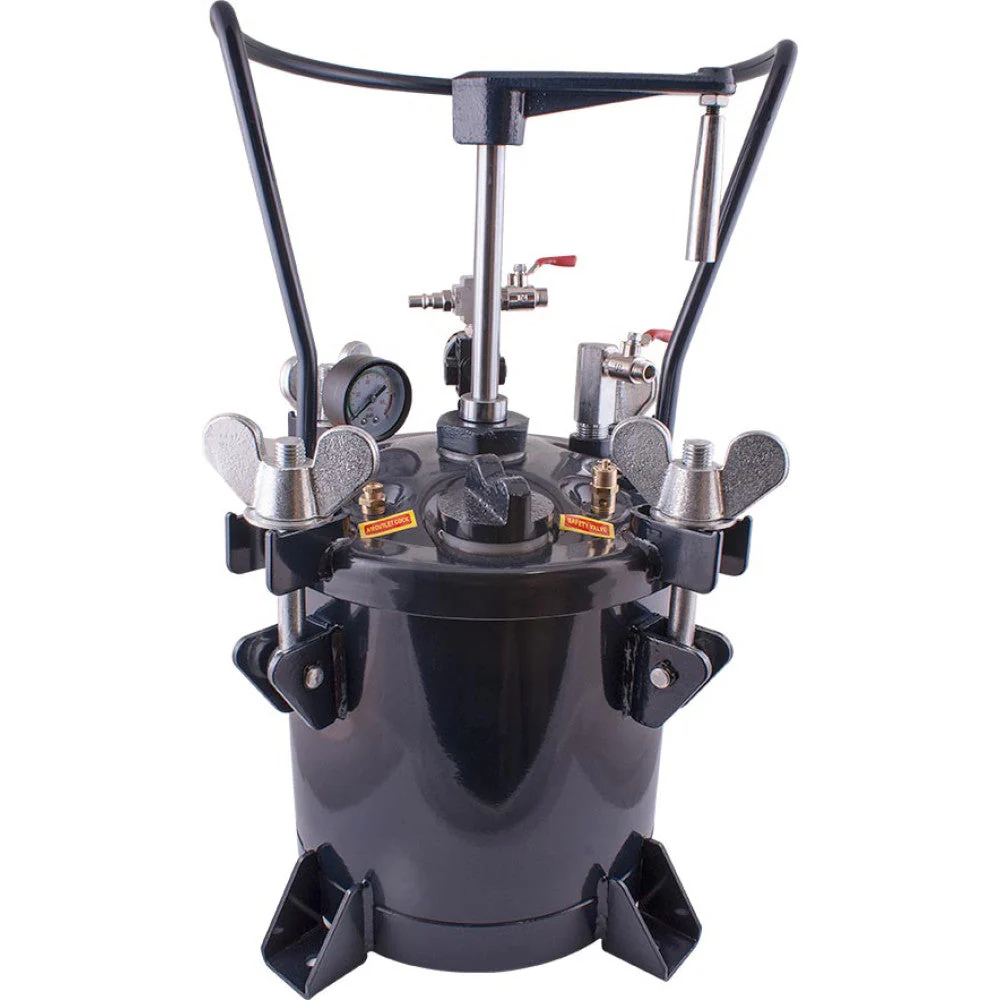

AirCraft | 10l Manual Mix Paint Pot

Paint pot 10l - Manual mix

The paint pot allows for a higher volume of paint to be sprayed using a pressure feed spray gun.

Care should be taken not to use catalyst/hardener based media (paints). Always refer to the paint manufacturer&s data sheet.

The pot is fitted with a manual mixing paddle used for manually agitating the paint to prevent it from separating.

Accessories to use with paint pot:

• SG PPPQ2U - PQ2 Spray gun for paint pot - Ø 2.0mm
• SG PPX4001S-2 - PQ2 Spray gun for paint pot - Ø 2.2mm
• SG PPX4001S - PQ2 Spray gun with fluid and air hose 7.5m long - Ø 2.2mm
• SG PPX4001S-1 - Fluid and air hose 7.5m long

The paint pot is supplied separately from the spray gun, fluid and air hose.

Features

• Powder coated tank finish that is easy to clean
• Clamp on lid with air tight seal gasket
• 4 easy roll casters with wide base for increased stability
• Stainless steel fluid pickup tube with filter screen
• Carrying handle

Specifications

Description	Specification
Paint pot capacity	10 litres
Working pressure	1.4 - 2.1 Bar
Feed type	Pressure feed
Max pressure	6.3 Bar
Air inlet thread	1/4" BSP
Fluid hose outlet thread	3/8" BSP
Agitator	Manual
